Product Details

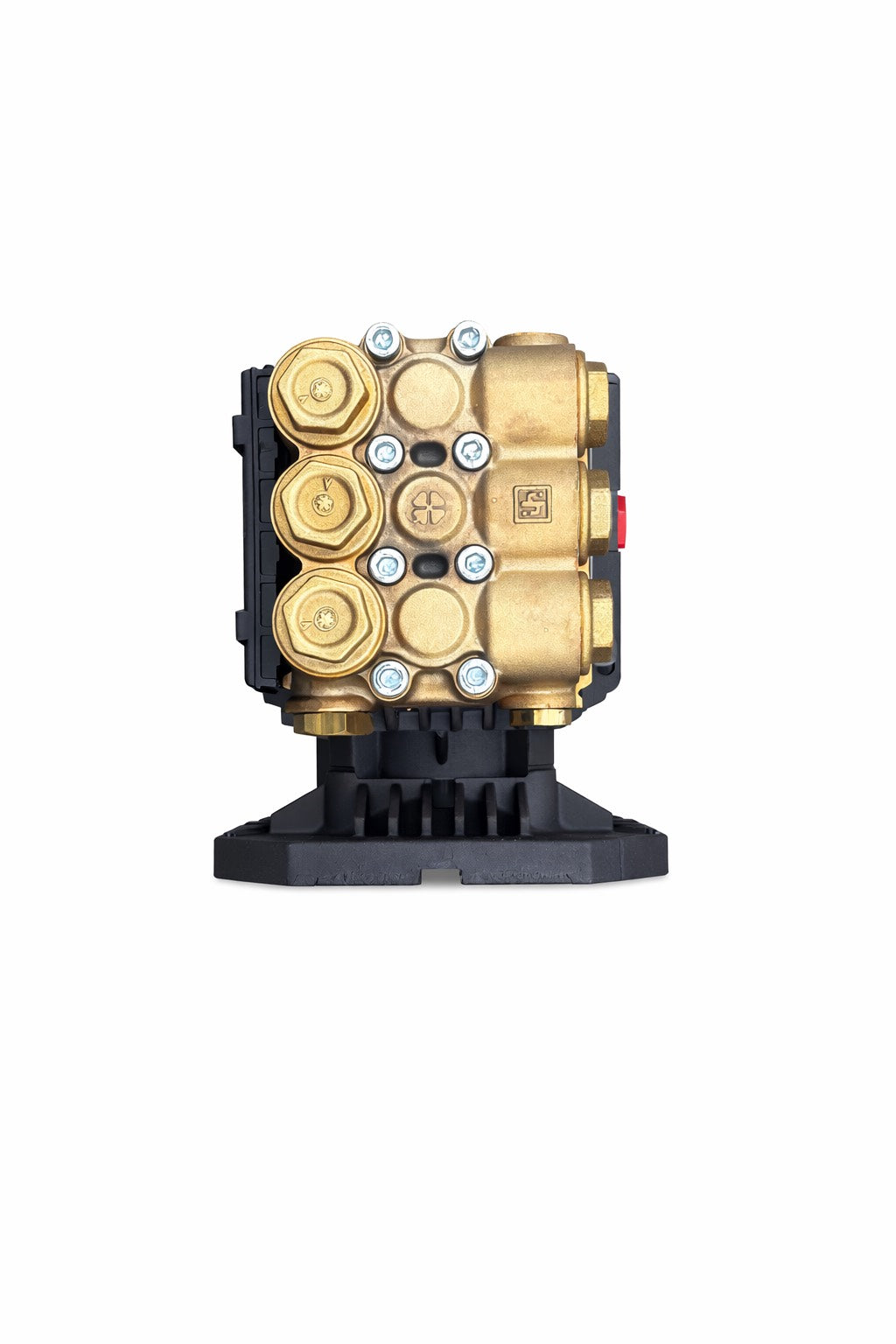

Proven triplex plunger pump used in Wolf 30–55 GPH systems. Choose solid-shaft for engine-driven setups or hollow-shaft 56C for electric motor coupling.
The TT9111 series delivers dependable high-pressure performance for compact RO watermakers. Wolf supplies both drive styles to match how your system is powered. Built with a forged brass manifold and ceramic plungers, the TT9111 is serviceable, reliable, and supported with widely available seal and valve kits.
Compatibility
Wolf Watermakers 30–55 GPH
Select the correct shaft type to match engine-driven or electric-driven systems
Key specs
Maximum flow: 3.0 GPM
Maximum pressure: 1,500 PSI
Maximum speed: 1,750 RPM
Power requirement: ~3.1 HP (EBHP)
Inlet: 3/8”
Outlet: 1/4”
Variant Details
Solid Shaft (TT9111): Engine / Belt drive
24 mm solid shaft for engine, belt, or coupler drive
Hollow Shaft 56C (TT9111EBF): Electric direct-drive
5/8” hollow shaft with NEMA 56C flange for electric motors
